3-channel flicker box with built-in dimmer, input for sensors, lightning option
This product is sold out.
LFXHub 3-channel flicker box w built-in dimmer
Out of stock
Description

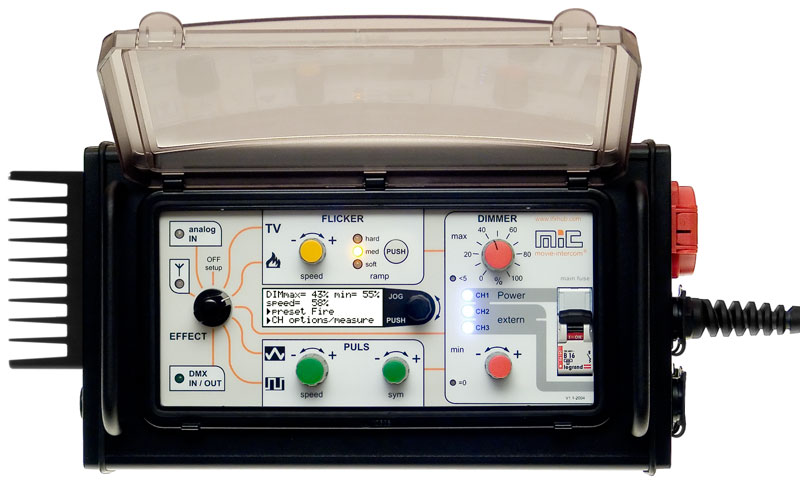

LFXHub
The modular flicker box
Create natural looking lighting effects using HD flicker curves and 3 channels.
The input for accessories allows for talent controlled lighting, SFX & lightningFX.
Control any number and size of tungsten, LED, fluoros and even HMIs combined with dimmer-shutters.
Its high quality lighting effects is proven since more than 20 years.
- HD flicker curves
- 12 presets
- 3 channels
- Input for sensors
- DMX-512 option
- Lightning option
The numerous options for variations of all effects makes the LFXHub to the universal tool for lighting effects.
Versatile modular System
With the wide range of available accessories this flicker box can be extended to an interactive lighting control unit.
Let the talents control lighting!
Effects
fire
TV
short-circuit
torche
welding
sequenzer
neon signs
“broken fluoro”
flasher
candle
lava glow
photo flash*
police lights
explosion flash*
lightningFX*
strobelight
projector flicker
cross fader
starting fluoro
construction flasher
input for sensors
Three output channels
Original flames of a fireplace “dance” around.
The 3 channel “fire” preset of the LFXHub automatically alternates the dim level of each channel the way a real flame would behave – flickering shadows.
For TV effects with three channels even the color changes in RGB mode when three different lamps are used.
Hints for practice
The distance between the gels to the lamps should be at least 30 cm (1 ft) the size of surface of the white diffusion gel should correspond to the original (or pretended) size of the fire source.
Instead of using three halogen lamps you could use e.g. a Parabeam 400 or some household type bulbs attached in a geled box.
If there are no objects in front of the background a single channel effect is sufficient.
Use different effect gels on the three lamps – the color temperature would change either.
If the object is too far away from the background you will not see flickering shadows, normaly a distance of around 60 cm (2 ft) is ideal.

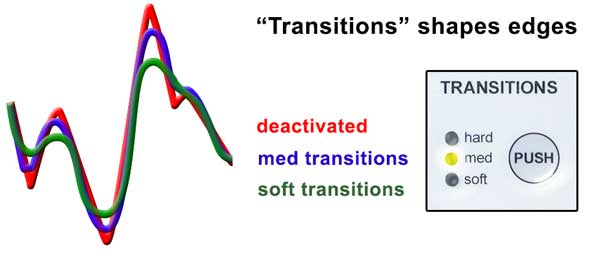

Ramp
Use every type and size of tungsten lamps or LED.
A result of an effect would look different with the same signal used at different lamp types/sizes, particularly if an LED lamp is used.
“Ramp” adapts effects to the duration of persistence of various types of filaments or to LED lamps.
The timing difference between the moment of electrical deactivation and the time of a completely extinguished light depends on the power of the bulb.
Choose the transition mode depending on the connected type and size of lamp (bulb inertia).
Thus any lighting effect looks excellent – with a 10K, a redhead, a standard 60 W bulb, fluoros or LED.
Use “Ramp” for different styles of e.g. fire – from aggressive to smooth.
Interfaces
for DMX module
Drive the lamp you want
Different interfaces of the LFXHub makes it easy to drive virtually any lamp fitting your needs.
Smart interfaces simplify even normally time consuming set-up of lighting effects.
- The internal built-in silent dimmer is perfect for most effects with tungsten lamps
- Three 0…10VDC outputs operate ECGs for fluoros, analog strobes or analog dimmer packs or KinoFlo´s Divalite series
- The optional DMX-512 module opens the door widely for control of LED lamps, multi-channel DMX dimmer packs, dimmer -shutter & strobes
No limits
The maximum output power only depends on the number and maximum output power of the connected dimmer or led fixtures.
Create a fire effect with flickering shadows or a sequencer for neon sign effects on the fly.
Lightning
This is an upgrade option for the LFXHub.
The “lightningFX” upgrade consists of the trigger module and a software upgrade with three additional presets: lightningX, single -flash and multi-flash.
Create stunning lightning and flash effects controlling one or more dimmer-shutter(s) using HMIs up to 18 kW or any number of LED lamps.
Link the shutters via DMX with the LFXHub.
The HMI is steadily on, the dimmer-shutter controls the brightness.
Advantages
- extra power generator not required
- spot or flood HMI(s)
- daisy-chain a virtually unlimited number of shutters or LED
- existing equipment can be used
- multi-channel flashes
Create breathtaking “moving” thunderstorm flashes using three channels.
+
with HMI
=
Additional information
| Weight | 2 kg |
|---|
Specifications
| order code | lfxhs (Schuko) • lfxhf (B, CZ, F, PL) • lfxhc (UK) |
|---|---|
| Power outlet | Schuko (most of Europe, Russia), CEE 7/V (CZ, F, PL, SK) or CEE 16 Amps (UK) |
General |
|
| operating voltage | 200-240 VAC / 50 Hz |
| operating temperature | -20°C …70°C (-4°F … 158°F) |
| protection level w lid closed | IP22 (control panel IP65) |
| dimensions (l x w x h) | 360 x 170 x 120 mm (14.1″ x 6.7″ x 4.8″) |
| weight | 5.1 kg |
| LFXHub ID | individual text showing the owners details on the display, defined prior shipping |
Internal dimmer pack |
|
| max. output power | 3600 W @ 230VAC |
| peak output current | 250 A for 10ms |
| upper dimmer level range (max) | 0…100% |
| lower dimmer level range (max) | 0…99% |
Interfaces |
|
| analog OUT | three separate sockets: CH 1, CH 2, CH 3; short-circuit proof |
| according to industrial standard SL10 | 0…10V DC each channel |
| output configuration for CH 2 + CH3 | selection for channel 2 and 3: synchronous, delayed, inverse opposite CH1 |
Analog IN control input |
connected LFX Tool is automatically identified, short circuit-proof |
| digital in/output | connection for DMX-TX module or for software updates |
DMX-512 output |
requires optional available DMX-TX module MKII |
| DMX output channels | 64 DMX channels for each LFXHub channel = max. of 192 DMX channels |
Presets |
|
| resolution of every preset | 24 samples per second at standard preset |
Flicker generator |
|
| fire category | presets: fire, candle, welding + individual memory for “my recent setting” |
| TV category | presets: feature film, news, video clip + individual memory space for “my recent setting” |
Puls generator |
|
| Triangle category | presets: sawtooth, sym. flasher, neon lights 1 + individual memory for “my recent setting” |
| Rectangle category | presets: construction flasher, turn indikator, neon lights 2 + individual memory for “my recent setting” |
| speed range 67.5 ms…28 seconds for one cycle | |
| Symmetry | ti=1…99% |
| all specifications subject to change without prior notice | |
