LumenDimPix Dual Pixel String Driver for CRMX or W-DMX

Original price was: 596,00 €.Current price is: 519,00 €. *

Delivery time: 5 - 7 days

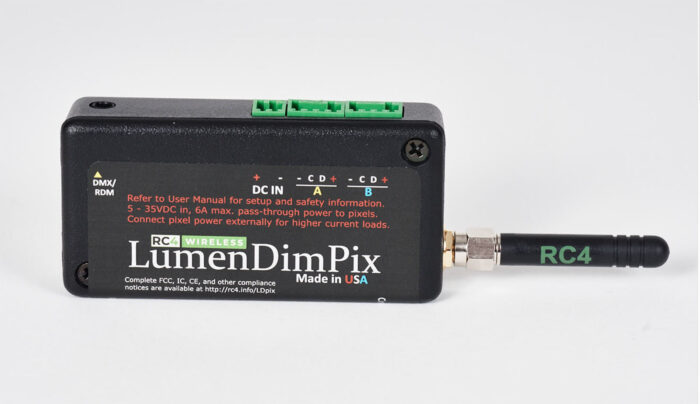

The RC4 LumenDimPix is a tiny wireless DMX driver for pixel LEDs. The LumenDimPix enables designers to create beautiful effects quickly and easily while using fewer DMX channels with Patented RC4 Custom Pixel Profiles™.

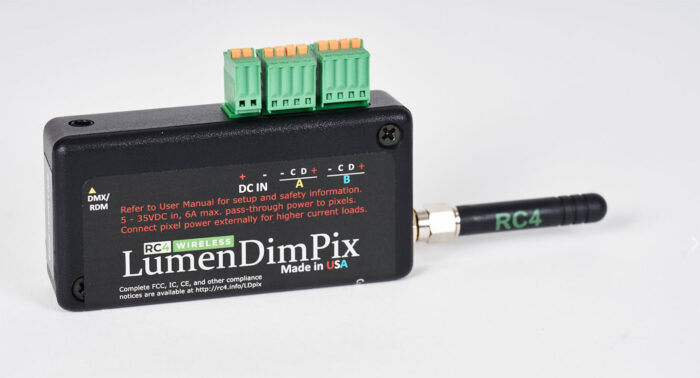

Each pixel driver purchase includes one 1dBi antenna and a set of Phoenix Connectors.

SKU: rldpix Categories: , Tags: ,

Description

The RC4 LumenDimPix is a tiny wireless DMX driver for pixel LEDs on the CRMX platform that enables designers to create beautiful effects quickly and easily while using fewer DMX channels. The LumenDimPix can control two separate strings up to 500 pixels long — the equivalent of 3000 DMX channels — using 3 to 510 channels within a single DMX universe. This is done using RC4’s patented RC4 Custom Pixel Profiles™. Designers can create unique and entirely original eye-catching effects and visuals without the use of complex multi-universe consoles, media servers, and all the wiring that goes with them. Using RC4 OneTouch™ or wired RDM, users specify the string type, the DMX start channel, and various configuration parameters for each driver.

Each designer has their favorite pixel string, and new products appear every day. However, few professional-grade drivers are built to control multiple string types, aka chip protocols.

The LumenDimPix is the most versatile product possible, supporting all popular protocols, including WS2801, WS2812, APA102, LPD8806, HD108, MY9231 and others.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Data Security Statement.
I Accept

All RC4 LumenDim devices include a genuine LumenRadio TiMo CRMX2 radio receiver. Easily assign any DMX channel and dimmer curve to any dimmer with the press of a single button using RC4 OneTouch™, or use Remote Device Management (RDM) via wired or wireless connection.

  • DMX data in and out via RC4 miniplug port
  • High-efficiency 6V-35VDC voltage input range
  • Remote Device Management (RDM) The DMX standard for device configuration, including E1.37 dimmer control extensions.
  • RC4 ColorMatch™ Match color palettes and white-balance different LED sources from different manufacturers.

As chip technology changes and advances, so does the LumenDimPix. The RC4 CodeLoader™ allows drivers for new pixel products to be added by simply downloading and installing them.

Any number of receiver-dimmers can be used in a LumenDim system, including multiple LumenDimPix devices.

Winner of the PLASA London 2015 Award for Innovation
Video of DMXpix debut at PLASA London 2015.

Traditional mapping of DMX to pixel strings consumes vast numbers of channels — a single universe of 512 channels can control only 170 red-green-blue pixels.  At the same time, many lighting designers use pixels for repeating patterns along a string, and to emulate separate lengths of traditional LED tape from a single string.  Patented RC4 Custom Pixel Profiles, using keyframes, deliver the same design versatility and control to designers, while vastly reducing the number of console DMX channels required to render unique effects using up to 1000 pixel LEDs.  In effect, Custom Pixel Profiles moves channel duplication out of the console and into the pixel driver itself.

Learn more about working with the LumenDimPix at the RC4 Knowledge Base.

Color matching can be challenging, most especially when dealing with pixel strings from different manufacturers. RC4 ColorMatch™ enables designers to adjust the color balance of each string to ensure a consistent palette, even when combining products from different manufacturers, different control protocols, and differences due to variations in LED binning. Pixel Color Order ensures all pixels in a large system will address colors with the same sequence, usually red, green, blue. By off-loading color correction and pixel color order to the pixel driver, rather than managing this in a console or media server, multiple different pixel strings can be controlled from the same DMX channels without unsightly color variation.

Using the DMX port as an input, the LumenDimPix can be controlled by wired DMX with extensive RDM (remote device management) support.

The internal wireless DMX receiver operates identically to the LumenDimIO in receiver mode. The RC4 DMX mini-plug port can used with a range of DMX adapters, including 3-pin and 5-pin male and female XLR connectors. The most common adapter is the RC4DMX5FA with 5-pin female XLR connector.

For more information, check out our previously held RC4 Livestream conversation about pixel drivers.

All prices and specifications are subject to change without notice.

NOTE: previous RC4 LumenDimPix products prior to 2023 had an I2C Data Port: 6-position (2×3) DIL header (2.54mm pin-spacing)

Additional information

Weight 0,1 kg

Specifications

  • Dimensions: 2.4” x 1.4” x 0.8” (60mm x 35mm x 20mm)
  • Weight: 1.95oz (68g)
  • Power Input: 5VDC – 35VDC, 0.4W idle, Phoenix 1881448 (mates with Phoenix 1881325)
  • Pixel String Ports: 2 x Phoenix 1881464 (mates with Phoenix 1881341)
  • Series 3 Versatility: DMX pixel dimming, RC4 ColorMatch™, RC4 Custom Pixel Profiles™, wired DMX in/out, wired RDM input
  • DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port
  • Pixel String Compatibility: WS2811, WS2812, APA104 (RGB, RGBW), APA102, SK6812RGBW, WS2801, LPD8806,MY9231 (with optional clock adaptor), DMX. RC4 Codeloader firmware updatable to add new string types.
  • Sensors: Input voltage, current draw
  • DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port
  • RF Antenna: RP-SMA external antenna with nominal 100m range. Range can be further extended using high-gain and/or directional antennas
  • Wireless DMX Protocol: All RC4 LumenDim devices are now being manufactured with Lumen Radio TiMo radio modules. The latest firmware is fully compatible with CRMX transmitters running both CRMX2 and CRMX Classic, as well as transmitters from Wireless Solution running in G3, G4, G4S or G5 2.4GHz mode
