Most powerful 3-channel flicker box with built-in DMX-512 in & out.
Easy set-up for lamp/dimmer with device library.
included in delivery: PSU 100-240 VAC, interchangeable adaptor plugs for EU, US, AU, UK; USB to DC-power adapter

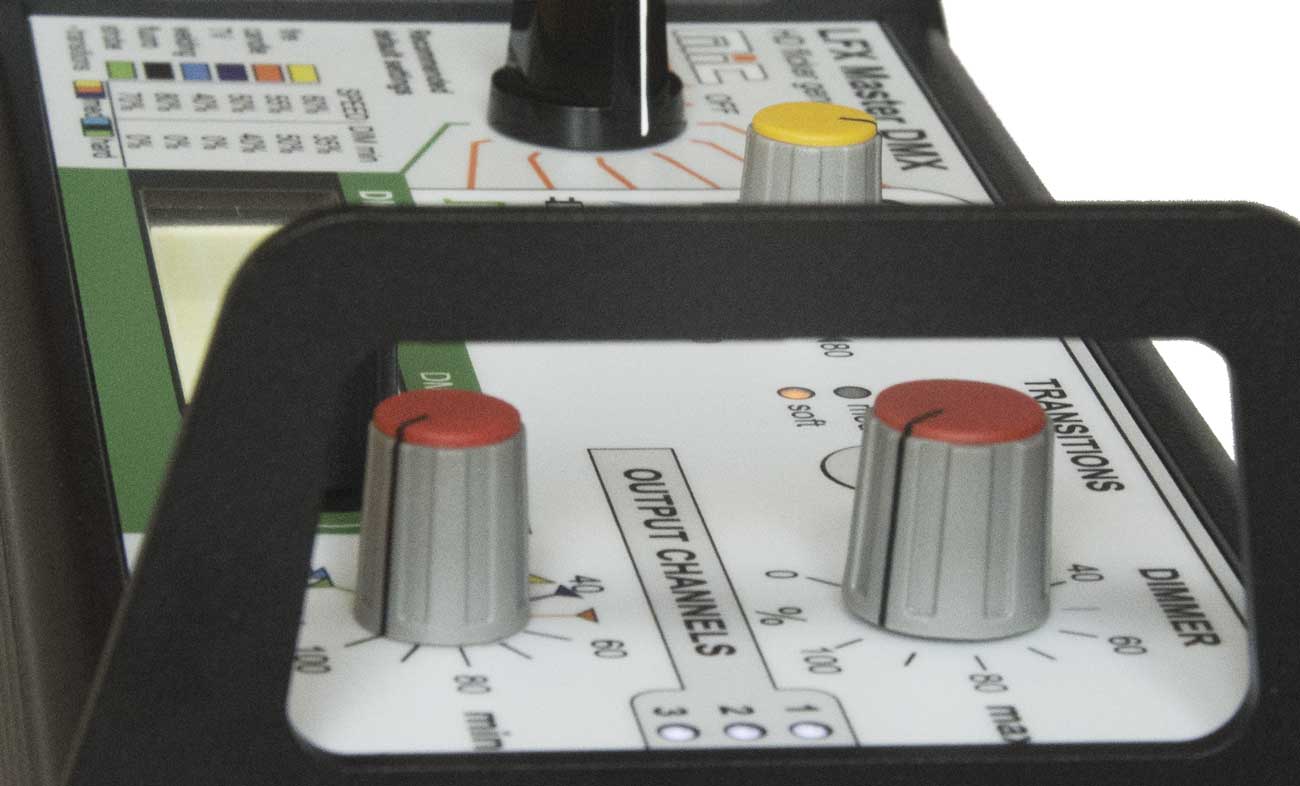

LFX Master DMX flickerbox
Original price was: 1.498,00 €.487,00 €Current price is: 487,00 €. * excl. 19% VAT
In stock
Delivery time: 1 - 2 days
In stock
Description
fire
candle
television
welding
“broken” fluoro
strobe
Easily set-up DMX-512 based lamps and dimmers with the device library.
High resolution flicker curves ensure realistic looking lighting effects, with a single channel or with three channels for fire with flickering shadows or TV-RGB effects.
Directly select a gel from the new gel library by gel name or enter color temperature in Kelvin using a device preset.
Customize every DMX output or input preset due to your demands.
Remote control the LFX Master DMX from an existing DMX universe or with your iPad.
Even better, wirelessly drive your lamps with RC4 Wireless DMX gear.
The LFX Master DMX is most versatile now premiered as the third generation of our flicker generators with upgraded firmware.
Example for SkyPanel-C set-up
Please find video samples & more details on the main page of the LFX Master DMX.
It´s fun to create LFX –
with the LFX Master DMX – and every lamp.
Additional information
| Weight | 1,8 kg |
|---|---|
| Dimensions | 34 × 23 × 12 cm |
Specifications
| order code | lmdx |
|---|---|
| operating voltage | 5 – 32 VDC, universal PSU included for 90 – 240 VAC, 50/60 Hz, adapter plugs: US, UK, EU, AU |
| temperature operating range | -10°C …65°C (50 … 149°F) |
| Dimensions  (l x w x h) | 20 x 11 x 8.6 cm (7.9″ x 4.3″ x 3.4″) |
| weight | 650 gramms (1.4 lbs) without PSU |
| DMX protocol | USITT DMX-512-A |
| DMX sockets | 5-pin XLR |
| DMX output | assisted configuration with device preset or custom DMX configuration. Set DMX channels for CCT, G/M, gel and RGB or allocate an output channel to a DMX channel. |
| Device presets | Pre-defined DMX set-up for Kino Flo: FreeStyle LED, Select LED, Diva-Lite LED, Celeb LED, Parabeam, Parazip Arri: Skypanel-C, L5-C, L7-C, L10-C, Broadcaster 2+; generic 2-channel LED, 12-channel tungsten dimmer pack, custom DMX channel allocation for all others |
| DMX input presets | Extend the functionality with a simple DMX console and presets @ DMX INPUT (optional dimmer console required)
|
| resolution preset | 24 fps, 60 seconds loop |
| HD effects | Fire, Candle, TV, Welding, “broken” fluoro, strobe |
| Strobe t= 67.5 msec …28 secs, aspect ratio 50% | |
| enclosure | made of 3 mm thick aluminum |
| software updates | no shipping, provided by e-mail, micro SD-card slot for updates built-in |
Downloads
User manual LFX Master DMX with NEW firmware 2.x
Quick-Start-Guide NEW (346 kB) PDF |
| User manual NEW (1 MB) PDF |
Bedienungsanleitung LFX Master DMX mit aktueller firmware 2.x
| Schnellstartanleitung NEU (348 kB) PDF |
| Bedienungsanleitung FW 2.0 (1 MB) PDF |
Firmware Upgrade guide & improvements/new functions
| Firmware 2.X new functions/improvements (734 kB) PDF englisch |
| Firmware upgrade guide (418 kB) PDF |
User manuals with previous firmware 1.x
| Quick-Start-Guide Firmware 1.X (230 kB) PDF |
| User manual firmware 1.X (803 kB) PDF |
| Device presets default values (90 kB) PDF |
| Skypanel-C fire with shifting colors set-up guide (62 kB) PDF |
Product brochure
| Product brochure (1.3 MB) PDF |
